MinimatY-F (Specication for Spliceless Heating Mat)

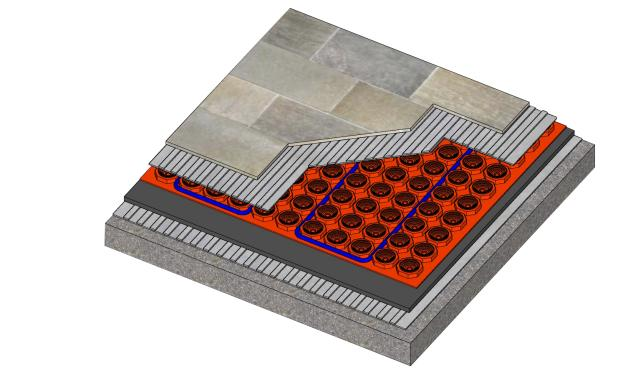

  • Spliceless heating products use a welding method that fuses the cold lead and the heating cable to ensure that the joints of the entire product are perfectly combined without any defects. The product is mainly used for indoor floor heating and can be installed under tiles or floors to evenly transfer heat upwards by radiation, providing healthy and comfortable warmth.


Request A Quote

Why Choose MinimatY-F (Specication for Spliceless Heating Mat)

<p>Top 1 Heating Cable Exporter in Asia-Pacific.</p>

Top 1 Heating Cable Exporter in Asia-Pacific.

<p>Over 20 Years of Manufacturing Experience.</p>

Over 20 Years of Manufacturing Experience.

<p>Complete Test Reports for Europe.</p>

Complete Test Reports for Europe.

<p>Technical Support Team to Assist Your Product Design.</p>

Technical Support Team to Assist Your Product Design.

<p>Complete Automatic Production Lines Support Fast Delivery.</p>

Complete Automatic Production Lines Support Fast Delivery.

<p>Support One Stop Sourcing.</p>

Support One Stop Sourcing.

  • Features
  • Specification
  • Product characteristics

    • Double-conductor structure: Traditional single-conductor heating cables need to be connected to cold wires at both ends, while Spliceless heating products have one cold wire and one sealed end, which is more convenient to install.


    • Reliable joint connection: Spliceless heating products use a method of welding multiple conductor wires together, which has obvious advantages in strength and stability compared to the single-wire welding connection of other products. The collection of multiple wires enables them to bear the load together and share the stress, thereby improving the overall strength. The mutual entanglement and interweaving between the multiple wires increases the stability of the connection and makes the welding part more secure. In contrast, single-wire welding has fewer connection points and has weaker joint stability and strength.


    Single strand connection


    Multiple strand connection






    • Wide range of products: Excellent manufacturing technology allows us to provide more size options, the smallest option  is the Spliceless heating product with a total power of 30W and a cable length of only 3 meters. These short-length products  are mainly used in smaller areas such as bathrooms, where traditional thermoplastic sleeve joints are easily exposed to water and have relatively poor waterproof performance.


    • Easy Installation: The products are easy to bend, to pass through conduits, and lower the loor height caused by traditional joints


    • Aesthetic Design: The outer diameter of the product is consistent throughout its entire length.


    • Strong Waterproof Capability: The joint part adopts the method of internal wire welding, insulation and outer sheath material seamless extrusion molding, and has excellent sealing performance.


    • Safe to use: The structure of the tin-plated copper shielding layer has anti-electromagnetic interference and good mechanical characteristics, and it can be used as a grounding wire.


    • Compatible Application: Suitable for use with plastic membranes. There’s no need to cut the plastic membrane for the joint and it helps reduce loor height.










  • Technical Speciications Sheet

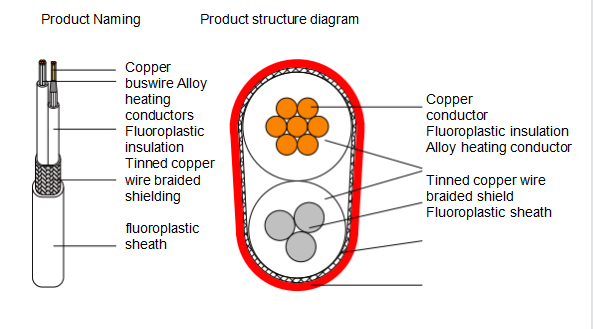

    Cable Structure:

    Dual-conductor single heating

    Rated voltage:

    230V

    Power Output:

    150W/m2 (optional range: 60-200W/m2)

    Cable spacing:

    80mm

    Outer Diameter:

    2.5-5.0mm

    Insulation Material:

    Fluoroplastics

    Sheath Material:

    Fluoroplastics

    Maximum Withstand Temperature:

    160℃

    Minimum Withstand Temperature:

    -40℃

    Cold Wire Length:

    2.5m (optional for other lengths)

    Bending Radius:

    6D (D: outer diameter of the cable product)



    Product selection



    Model

    Power

    Heating Wire

    Length

    Total

    Resistance

    Outer

    Diameter

    Heating Range

    Geothermal Network Dimensions

    w

    m

    Ω

    mm

    m2

    sq.ft

    m*m

    in.*ft.

    MinimatY-F/150-75-0.5

    75

    6.25

    705.3

    3.3*2.3

    0.5

    5.4

    0.5*1

    20*3.2

    MinimatY-F/150-150-1.0

    150

    12.5

    352.7

    3.3*2.3

    1

    10.8

    0.5*2

    20*6.5

    MinimatY-F/150-225-1.5

    2225

    18.8

    235.1

    3.3*2.3

    1.5

    16.1

    0.5*3

    20*6.5

    MinimatY-F/150-300-2.0

    300

    25

    176.3

    3.3*2.3

    2

    21.5

    0.5*4

    20*12.9

    MinimatY-F/150-375-2.5

    375

    31.3

    141.1

    3.3*2.3

    2.5

    26.9

    0.5*5

    20*16.1

    MinimatY-F/150-450-3.0

    450

    37.5

    117.6

    3.5*2.4

    3

    32.3

    0.5*6

    20*19.4

    MinimatY-F/150-525-3.5

    525

    43.8

    100.8

    3.5*2.4

    3.5

    37.7

    0.5*7

    20*22.6

    MinimatY-F/150-600-4.0

    600

    50

    88.2

    3.5*2.4

    4

    43.1

    0.5*8

    20*25.8

    MinimatY-F/150-675-4.5

    675

    56.3

    78.4

    3.5*2.4

    4.5

    48.4

    0.5*9

    20*29.1

    MinimatY-F/150-750-5.0

    750

    62.5

    70.5

    3.7*2.5

    5

    53.8

    0.5*10

    20*32.3

    MinimatY-F/150-900-6.0

    900

    75

    58.8

    3.7*2.5

    6

    64.6

    0.5*12

    20*38.8

    MinimatY-F/150-1050-7.0

    1050

    87.5

    50.4

    4.1*2.7

    7

    75.3

    0.5*14

    20*45.2

    MinimatY-F/150-1200-8.0

    1200

    100

    44.1

    4.1*2.7

    8

    86.1

    0.5*16

    20*51.7

    MinimatY-F/150-1350-9.0

    1350

    112.5

    39.2

    4.1*2.7

    9

    96.9

    0.5*18

    20*58.1

    MinimatY-F/150-1500-10

    1500

    125

    35.3

    4.2*2.8

    10

    107.6

    0.5*20

    20*64.6

    MinimatY-F/150-1650-11

    1650

    137.5

    32.1

    4.2*2.8

    11

    118.36

    0.5*22

    20*71.1

    MinimatY-F/150-1800-12

    1800

    150

    29.4

    4.2*2.8

    12

    129.2

    0.5*24

    20*78.8
