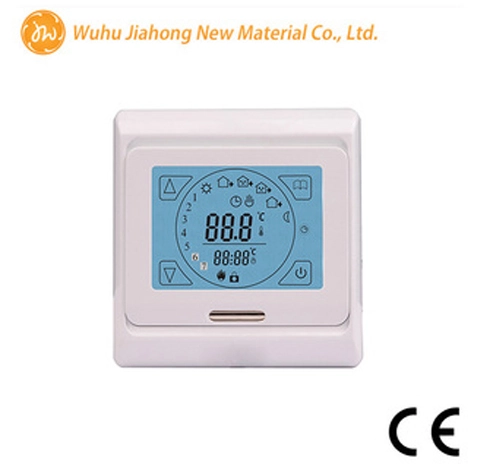

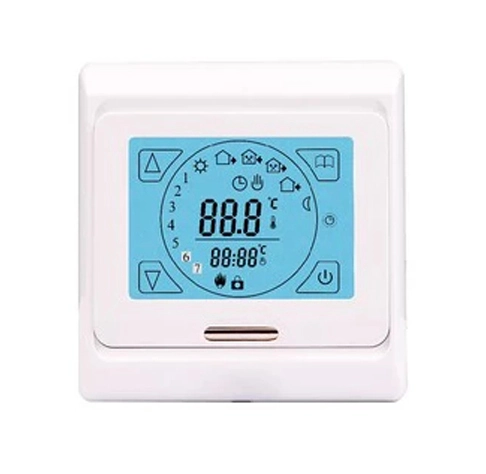

#E91/TT16 is programmable thermostat for electric floor heating systems.
ClassicDesign, Easy to operate
Support programming, Adaptive function
Small MOQ and 10 Days Fast Delivery;
Support 2Years Factory Warranty.
Weekly circulation digital programming thermostat with LCD touch screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.
#E91/TT16 programming thermostat is designed to offer a simple temperature regulation solution to the floor heating system.
1. Three modes for the end user to operate: Anti-frozen mode/Programming mode/Manual mode
2. Programming: 5/2/6/1/7 6-event everyday Wake-up, Leave(am), Return(am), Leave(pm), Return(pm), Sleep
3. Temperature calibration: 9.9℃
4. Potential free output and main power output
5. Weekly program with each day programmable
Touch screen | LCD display |
Model Number | E91/TT16 |
Type | underfloor heating thermostat |
Voltage | 220/230V |
Power consumption | 2W |
Max Load | 16A (Resistive load) |
Setting range | 5~60℃ |
Ambient temperature | -5℃~50℃ |
IP Class | IP20 |
Switching differential | 0.5-10℃ |
