Stepping onto a freezing tile floor after a warm shower is a universally dreaded experience. Incorporating an underfloor heating mat for bathroom spaces has evolved from a premium luxury to an essential standard for modern residential and commercial renovations. However, because bathrooms are high-moisture environments, selecting the right heating system and installing it correctly requires adherence to strict safety and technical standards.
As a global leader in heating cable manufacturing since 2002, Wuhu Jiahong New Material Co. Ltd has spent over 25 years perfecting intelligent radiant heating solutions. Operating from a massive 55,000㎡ smart factory equipped with automated manufacturing lines, Wuhu Jiahong delivers 100% inspected, world-class heating technologies to North America, Europe, and beyond. This comprehensive guide will walk you through choosing and deploying underfloor heating mats for bathrooms to achieve ultimate barefoot comfort safely.

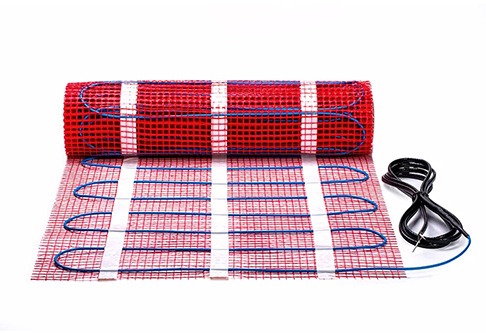

When sourcing a bathroom heat mat, it is crucial to understand its core anatomy. A premium heating mat consists of a pre-spaced constant wattage heating cable pre-attached to a flexible, sturdy fiberglass mesh.
Wuhu Jiahong’s systems feature an advanced sticky attachment net (self-adhesive backing) that allows the mat to lay perfectly flat on the subfloor during dry-fitting. This eliminates the risk of the cable shifting or floating to the surface when the tile mortar or self-leveling compound is poured. For wet areas like bathrooms, top-tier manufacturers import premium raw materials directly from the USA, Japan, and Germany to ensure the outer jackets and fluoropolymer insulations provide impeccable waterproofing and chemical resistance over decades of continuous operation.
Selecting the right underfloor bathroom heating mats involves more than just matching the floor square footage. To ensure optimal thermal performance and safety, engineers and procurement managers must look at specific technical benchmarks:
l Voltage and Power Density: Standard residential bathroom heating mats typically run on 120V or 240V, delivering an optimized heat output (usually around 12W–15W per square foot) to pierce through dense ceramic or stone tiles efficiently.
l Global Safety Certifications: Never compromise on safety in wet zones. Ensure your heating elements hold reputable international credentials such as UL, CSA, ETL, TUV, CE, and EAC.
l Warranty and Longevity: Floor heating is a permanent installation beneath finished tiles. Wuhu Jiahong underscores its production confidence by offering an industry-leading 25-year warranty for underfloor heating systems, backed by a 100% rigorous automated testing protocol prior to shipment.
Not all floor heating systems are created equal, especially when confronted with bathroom moisture and varying subfloor structures. The table below outlines how premium heating mats compare against lower-grade generic alternatives:
Feature / Metric | Premium Wuhu Jiahong Heating Mats | Generic/Low-Cost Alternatives |
Primary Insulation Material | High-grade Fluoropolymer (Imported from USA/Japan) | Standard PVC or low-temp plastics |
Installation Efficiency | Self-Adhesive Sticky Mesh (Quick Lay-down) | Plain mesh requiring manual taping/stapling |
Warranty Coverage | 25 Years (Residential/Comfort heating) | 1 to 5 Years limited warranty |
Safety Compliance | UL, CSA, ETL, TUV, CE, ATEX Certified | Minimal or regional-only certifications |
Manufacturing Standards | 100% Inspected in a 55,000㎡ Smart Factory | Batch-tested in manual workshops |

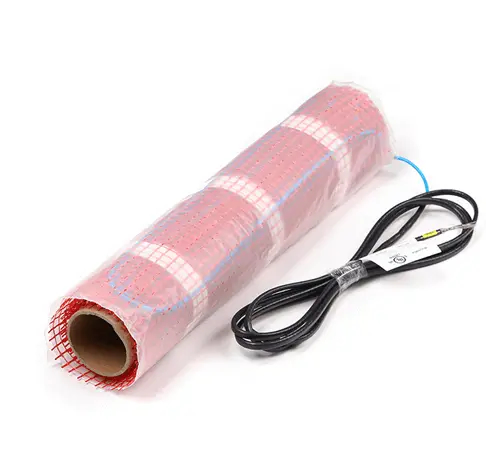

Installing a bathroom heated floor mat requires a strategic blend of careful layout planning and electrical diligence. Follow these industry-standard phases to ensure a flawless setup:
Clean the subfloor thoroughly, removing any sharp debris that could puncture the heating cable. Before unrolling the mat, use a digital multi-meter to measure the cable's resistance. Verify that the reading matches the manufacturer's specification stamped on the product label to confirm no damage occurred during transit.
Roll out the underfloor heating mat for bathroom zones, keeping the cable at least 2–3 inches away from walls and fixed obstacles like toilets, vanities, or drains. Crucial Rule: You can cut the fiberglass mesh to alter directions or shape the layout, but never cut or shorten the actual heating cable.
Once positioned via the self-adhesive mesh, apply a layer of polymer-modified thin-set mortar or self-leveling underlayment over the mat. Use a plastic trowel carefully to avoid scraping the cable wire. Retest the cable resistance a second time before laying down your ceramic, porcelain, tile, or stone flooring over the embedded grid.
You can cut and turn the fiberglass mesh backing to fit your bathroom's layout perfectly. However, you must never cut, splice, or shorten the actual heating cable itself. Doing so will alter the electrical resistance, causing the system to overheat, fail, or void its safety certifications.
When properly installed under tile and connected to a Ground Fault Circuit Interrupter (GFCI), it is 100% safe. Wuhu Jiahong mats utilize heavy-duty grounding braids and advanced multi-layered insulation jackets approved by UL, CSA, and TUV, rendering them completely waterproof and secure against electrical leaks.
Typically, it takes between 30 to 60 minutes to reach your desired comfort temperature. Warm-up times depend on your subfloor insulation quality and the thickness of your floor tiles. Utilizing a programmable smart thermostat can automate this process so your floors are perfectly warm exactly when you wake up.
Electric heating mats are incredibly versatile and operate optimally underneath high-thermal-conductivity surfaces like ceramic tiles, porcelain, and natural stone. They are also highly compatible with engineered wood, laminate, and luxury vinyl tiles (LVT), provided the thermostat is set to the flooring manufacturer's recommended temperature limits.
Investing in a high-caliber bathroom heat mat system transforms cold, damp spaces into inviting, energy-efficient sanctuaries. By understanding your layout requirements, choosing certified systems built with premium raw materials, and adhering to strict installation protocols, you guarantee decades of safe operation.
With more than 25 years of engineering excellence, over 300 dedicated professionals, and a state-of-the-art 55,000㎡ smart factory, Wuhu Jiahong New Material Co. Ltd continues to set international benchmarks for both constant wattage and self-regulating heating cables. Backed by an unparalleled 25-year warranty, Jiahong remains the trusted global choice for residential, commercial, and industrial thermal management.
Ready to upgrade your next project? Contact Wuhu Jiahong's engineering support team today to receive a customized layout calculation, technical data sheets, or a direct factory quotation for your specific distribution needs.
