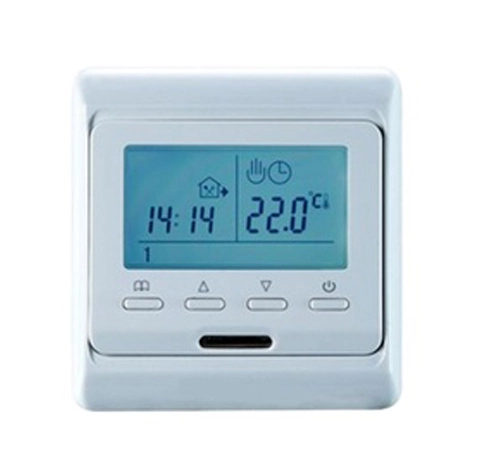

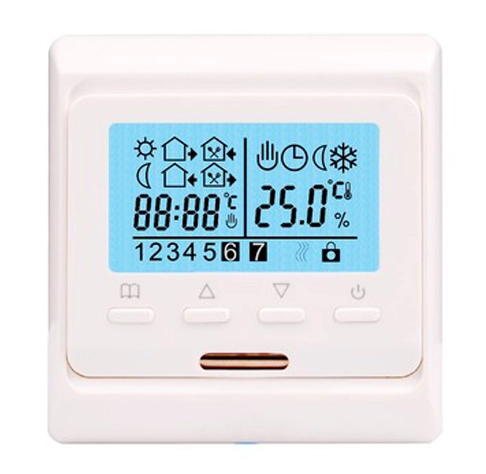

#E51/ST16 is programmable thermostat for electric floor heating systems.
ClassicDesign, Easy to operate
Support programming, Adaptive and open windows function
Small MOQ and 10 Days Fast Delivery;
Support 2Years Factory Warranty.
Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.
#E51/ST16 programming thermostat is designed to offer a simple temperature regulation solution to the floor heating system.
Three modes for the end user to operate: Anti-frozen mode/Programming mode/Manual mode
Programming: 5/2/6/1/7 6-event everyday Wake-up, Leave(am), Return(am), Leave(pm), Return(pm), Sleep
Temperature calibration: 0-9.9℃
Adaptive function: Start ahead time range: 0-30 minutes.
Open windows function
Touch screen | LCD display |
Model Number | E51/ST16 |
Type | underfloor heating thermostat |
Voltage | 220/230V |
Power consumption | 2W |
Max Load | 16A (Resistive load) |
Setting range | 5~60℃ |
Ambient temperature | -5℃~50℃ |
IP Class | IP20 |
Switching differential | 0.5-10℃ |
