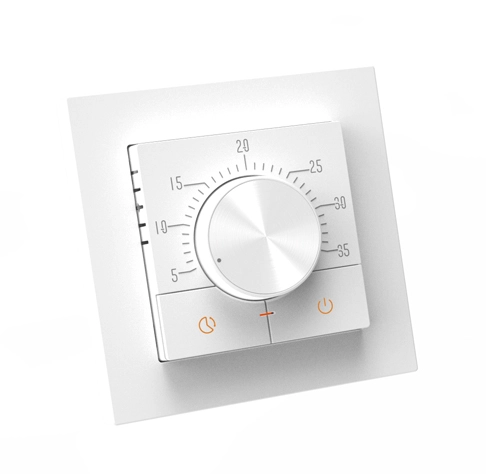

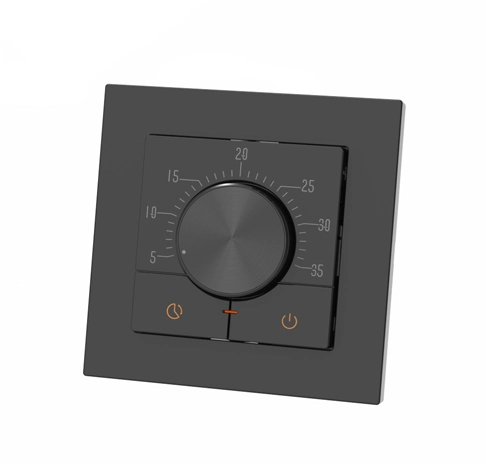

The ET29 is a mechanical, manually controlled thermostat that uses both room and floor sensors for precise temperature control. It can configure different adapt - ers to replace the middle frame according to the needs of customers. In addition, we have two different types of knobs as stan - dard for customers to change freely.
Temp tolerance: Reduce the number of frequent starts of relays. Reduce noise and extend life.
Setback: Actively reduce the heating temperature, save energy consumption.
Room and floor sensor: The user can choose the sensor according to the need, and the floor protection function is provided under the dual temperature and dual control.
Set the upper and lower limits of the temperature: If you want to set the maximum and minimum temperature within an ideal range,you can adjust it manually.
Supply Voltage | 120-240 Vac 50/60 Hz |
Max Load | 16A |
Setting Range | +5 to+35℃ |
Tolerance | 1-3℃ |
Setback | 4-8℃ |
Floor temp. limit protection | 30℃ |
Number of sensors | Room+Floor |
Certification | CE |
Sensor Type | NTC 3950 10K 1% |
Standby Power | ＜1W |
Dimensions(H/W/D) | 84*84*52mm |
