#ET-84 wireless thermostat is a new arrival design in 2023, and it is suitable for both electric floor heating system and water floor heating system.
Top Class Security Protection, Retain Wall Design Will Prevent Short Circuit;
Both Wi-Fi Version and Without Wi-Fi Version Are Available;
5+1+1/ 7 Day Programmable;
ColorScreen, Touch Key, Borderless Structure;
Comply With CE Standards, 2 Years Factory Limited Warranty.

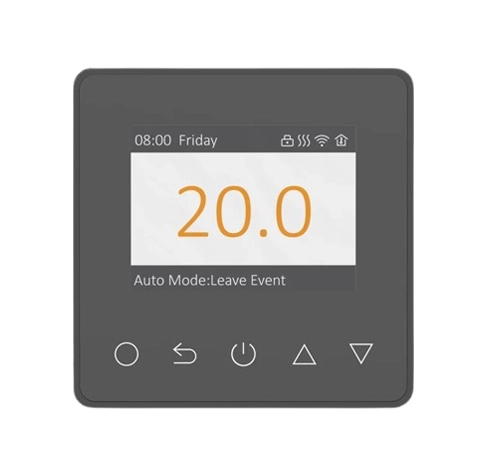

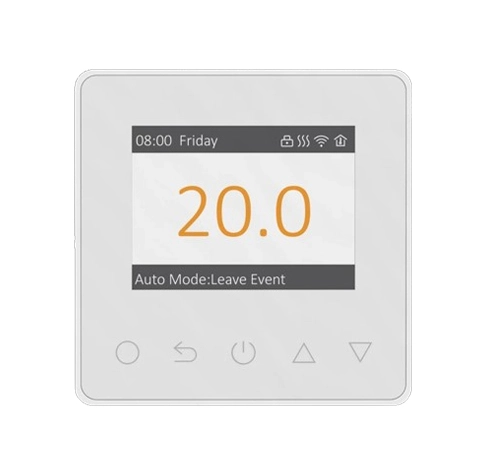

ET-84 color screen thermostat is suitable for both electric floor heating system and hydronic floor heating system. It adopts top-class hardware, VA Color Screen, durable relay. Simple operation and works with Amazon Alexa and Google Assistant to support your smart life. Eco design function such as window detection and adaptive function to learn your habit and make the room temperature right to your setting on time.
ET-84 thermostat is designed to offer an intelligent temperature regulation solution to the floor heating system. It is suitable for both electric floor heating system and water floor heating system.
LCD Display Screen is easy to read;
Simple operation
Controlled By Smart Phone via WiFi Connection;
Wall Design, Easily Installed;
Sensor selection;
Off time frost protection;
Floor high temperature protection;
Water heating system and Electric Heating System
Programmable, 7 Day / 5+1+1 Day Programming
Adaptive function: After several days of installation and use, Adaptive function ensures that the required temp has already been reached when the next event begins.
Open window: This function only works when room sensor or both sensors is selected.
The thermostat with this function will shut off automatically for 15 min when the window opens, as it can detect that the room temp plummets.
Energy use: This option allows you to enter the various data used to calculate energy use.
Technical data | |
Power Supply Voltage | 85-265Vac 50/60 Hz |
Maximum Switching Current | 16A(electric heating)/3A(water heating) |
Temperature Setting Range | 5-40℃ |
Standby Power | <1W |
Dimension | 86*86*16(mm) |
IP Rating | IP21 |
Wire Diameter | ≤2.5mm² |
