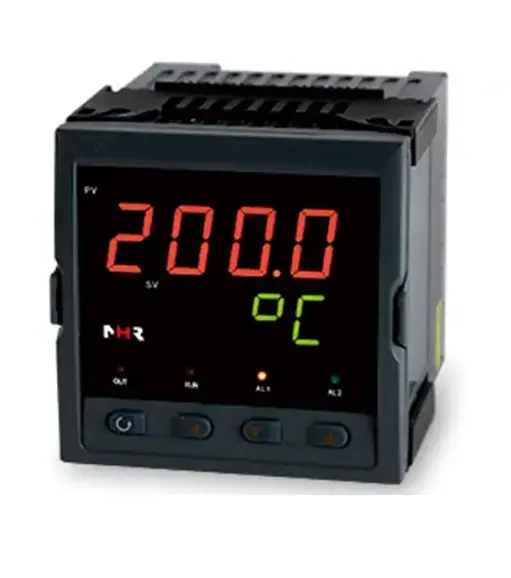

jh stc samp1
jh stc samp1

STC Single-channel Digital Display Controller

  • The STC Single-channel Digital Display Controller (simplified version) is easy to operate, with a measuring accuracy of 0.3 grade, dual four-digit LED displays, suitable for detecting industrial process quantities such as temperature, pressure, flow, and humidity. It supports 4-way alarm function, supports RS485 communication interface with standard MODBUS protocol, optical isolation between input/output and power supply, power supply of 100-240VAC, standard card insertion installation, and a working environment temperature of0℃-50℃wit relative humidity of 5%~85%, no condensation.

Request A Quote

Why Choose STC?

<p><span style="text-wrap: wrap;">No.1 Heating Cable Exporter in Asia-Pacific</span></p>

No.1 Heating Cable Exporter in Asia-Pacific

<p><span style="text-wrap: wrap;">Over 25 Years of Manufacturing Experience</span></p>

Over 25 Years of Manufacturing Experience

<p><span style="text-wrap: wrap;">Complete Test Reports For Europe And America</span></p>

Complete Test Reports For Europe And America

<p><span style="text-wrap: wrap;">Technical Support Team Assist Your Product Design</span></p>

Technical Support Team Assist Your Product Design

<p><span style="text-wrap: wrap;">Complete Production Lines Support Fast Delivery</span></p>

Complete Production Lines Support Fast Delivery

<p>Supports One Stop Sourcing</p>

Supports One Stop Sourcing

  • Features
  • Specification
  • Function:

    • Single loop input,dual screen LED digital display

    • Has upper and lower limit alarm function,with LED alarm indicator light

    • Supports RS485 communication interface,adopts standard MODBUS RTU communication protocol (for some models)

    • Input,output,power,and communication are optically isolated from each other

    • Parameter setting password lock,setting parameter power-off permanent storage

    • Sensor monitoring

    • Restore factory default parameters



  • Technical parameters:

    • Applicable environment temperature:0℃~50℃

    • Relative humidity:5%~85%RH (avoid strong corrosive gas)

    • Measurement accuracy: level 0.3

    • Setting mode: panel touch button for digital setting, parameter settings for password lock, parameter settings for power-off permanent preservation.

    • Display mode:-1999~9999 measurement value display; LED working status display

    • Installation method: standard snap-in type Working power:100-240VAC,50/60HZ

    • Input signal: PT100

    • Digital communication:t allows the display instrument to communicate with the PC or computer network system using the MODBUSRTU protocol. It is recommended to use the isolation interface board. Otherwise, interference may occur or affect communication due to different earth potentials. The wire should use shielded twisted pair (for some models).

    • Note:If you need to order, please consult with the local Jiahong technicians for technical confirmation and model selection.

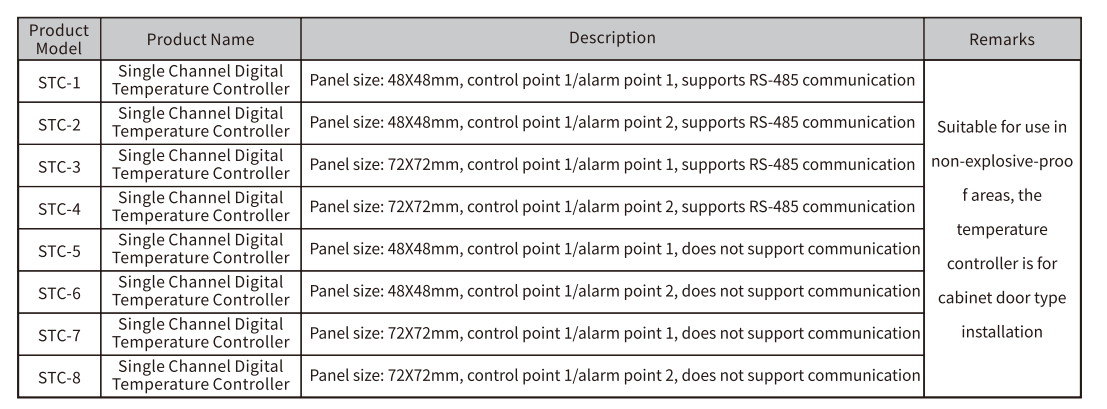

    Product Model
