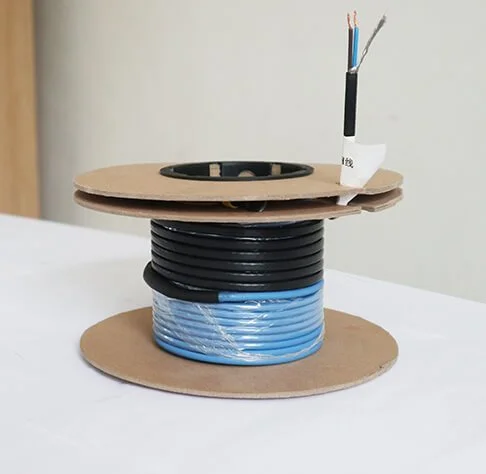

Radiant Heat Wire #WFOH-D

  • #WFOH-D radiant heat wire is a twin-conductor constant wattage heating cable, and it uses low-smoke halogen-free material as its outer jacket.

    • Fluoropolymer Plastic Insulation, Safe Uses, and Stable Function;

    • Suitable For Both Wet Places and Dry Places;

    • Comply With CAC, CE Standards;

    • 25 Years Limited Warranty.

    Jiahong #WFOH-D Radiant Heat Wire is a twin-conductor constant wattage heating cable, and its outer diameter is about 5mm. It adopts low-smoke halogen-free material as its outer jacket, which will comply with the strict eco-friendly policy.

    We offer two different types: 10w/m and 20w/m. You can custom power, length, materials, cable printing, even packing types based on your requests.

    Jiahong #WFOH-D Radiant Heat Wire is usually used in an electric floor heating system, or ground freeze protection system as a safe heater. It is also used in a concrete wall or road to make it dry fast.

    No matter which places you want to use it, it will provide a stable electric heating solution in not less than 25 years.

    All #WFOH-D Radiant Heat Wires will be made according to CE and EAC safe standards. And we already passed the third part test and got the reports of CE, EAC, and GOST.

    Contact us now!


Request A Quote
  • Features
  • Specification
  • Cable Structure

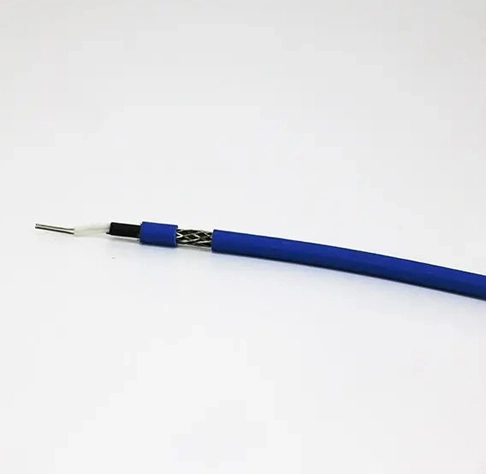

    As a regular constant wattage heating cable, #WFOH-D Radiant Heat Wire also adopts a four-layer structure.


    Tinned Copper Conductor

    Twin-conductor structure and cable heats up through the conductor;


    Inner Insulation

    Braiding Layer

    Made of Tinned Copper braid, it will absorb 100% electromagnetic radiation.


    Protection Layer

    Made of Low-smoke halogen-free material, waterproof, support wet place uses;


    We will offer a 2.5m cold lead to all cables and we will assembly them first and packed with a tray. If you need an extra color box with your design, you can discuss the details with us.


  • Cable ConstructionTwin Conductor
    Rated Voltage230v
    Output20w/m ± 10%
    Heating Element Size10~155m
    Bending Radius50mm
    Cable Diameter4.8mm~5.6mm
    Conductor InsulationXLPE
    Outer InsulationLSZH
    Max. Ambient Temperature85°F(30℃)
    Min. Installation Temperature40°F(5℃)
    Cold Lead2.5m Length
