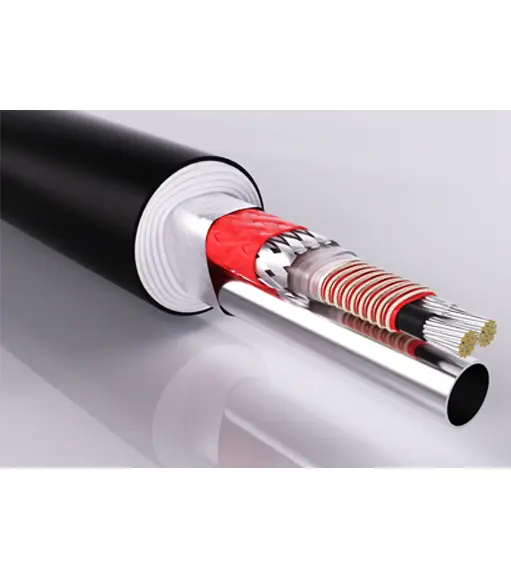

Parallel Constant-Power Electrical Tracing Tubing Bundle EFCW

  • The product has passed the international ex-proof certification such as IECEx and ATEX, and can be safely used in hazardous areas. Fluoropolymer outer jacket has corrosion and chemical corrosion characteristics, which can meet the requirements of different environment

Request A Quote

Why Choose Parallel Constant-Power Electrical Tracing Tubing Bundle EFCW?

<p>No.1 Heating Cable Exporter in Asia-Pacific</p>

No.1 Heating Cable Exporter in Asia-Pacific

<p><span style="text-wrap: wrap;">Over 25 Years of Manufacturing Experience</span></p>

Over 25 Years of Manufacturing Experience

<p><span style="text-wrap: wrap;">Complete Test Reports For Europe And America</span></p>

Complete Test Reports For Europe And America

<p><span style="text-wrap: wrap;">Technical Support Team Assist Your Product Design</span></p>

Technical Support Team Assist Your Product Design

<p><span style="text-wrap: wrap;">Complete Production Lines Support Fast Delivery</span></p>

Complete Production Lines Support Fast Delivery

<p><span style="text-wrap: wrap;">Supports One Stop Sourcing</span></p>

Supports One Stop Sourcing

  • Features
  • Specification
  • Application

    Freeze protection and process temperature maintenance Temperature Range for tube:5~150℃

    FCW parallel power heating cable has good mechanical performance, low starting current and high temperature resistance.

    It is suitable for tubing freeze protection under high exposure temperature or tubing heat tracing with high power output. Maximum exposure temperature is 260 degree C.

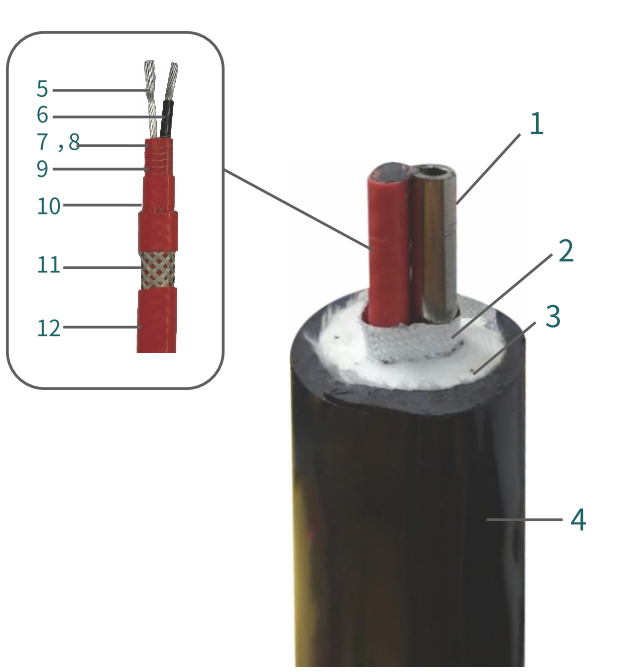

    Structure



    1. Process pipeline

    2. Heat-reflecting layer

    3. Moisture-proof fiber/glass/wool insulation layer

    4. Polymer outer sheath

    5. Nickel-plated copper busbar

    6. Conductor insulation layer of high-temperature fluorine material

    7. Combination layer of high-temperature fluorine material

    8. Conductive connection point

    9. Nickel-chromium alloy heating element

    10. High-temperature fluorine material

    11. Tinned copper wire braiding mesh

    12. Sheath of high-temperature fluorine material



    Product performance

    ● The heat output of tracing band is kept constant.

    ● Thetracing band can be cut according totheinstallation requirements

    ● It can be used for the explosion hazard environment

    ● Excellent anti-corrosion and resistance to chemical corrosion

    ● Consistent heat transfer and thermal performance

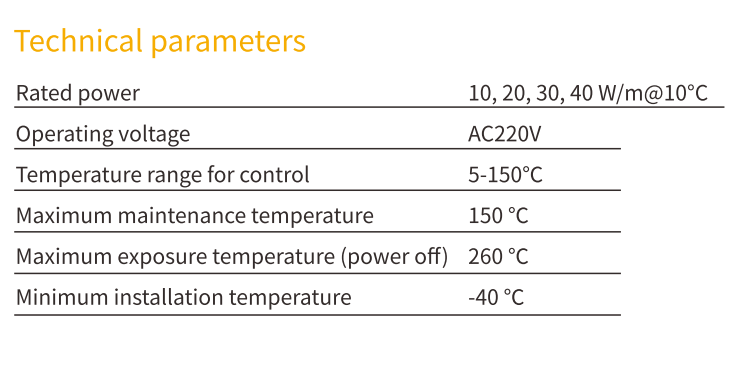

  • efcw-technical-paraments.png
