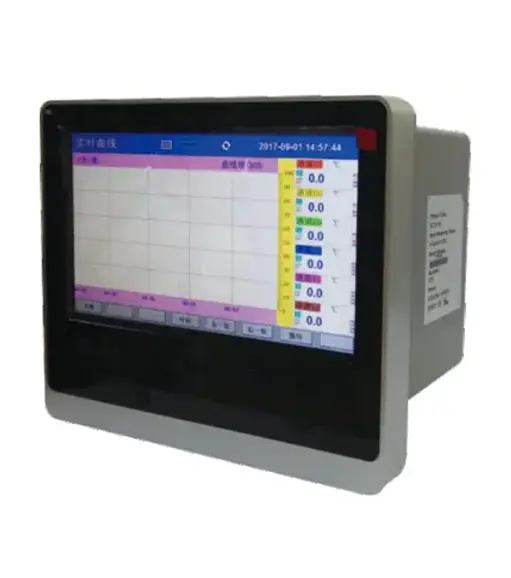

MTC Muti-channnel Digital Display Controller

  • MTC multi-channel digital display controller 1~48 universal input (configurable input selection: standard voltage, standard current, thermocouple, thermal resistance, millivolts,etc.). Can provide 18 alarm outputs or 12  analog transmission outputs, RS232/485 communication interface, Ethernet interface, micro printer interface, and USB  interface, SD  card socket; can provide sensor power distribution; has a powerful display function, real-time curve display, historical curve recall bar graph display, alarm list display,etc.

    Humanized appearance design, perfect function, reliable hardware quality, exquisite manufacturing technique, higher performance-price ratio.



Request A Quote

Why Choose MTC?

<p>No.1 Heating Cable Exporter in Asia-Pacific</p><p><br/></p>

No.1 Heating Cable Exporter in Asia-Pacific


<p>Over 25 Years of Manufacturing Experience<br/></p><p><br/></p>

Over 25 Years of Manufacturing Experience


<p>Complete Test Reports For Europe And America<br/></p><p><br/></p>

Complete Test Reports For Europe And America


<p>Technical Support Team Assist Your Product Design<br/></p><p><br/></p>

Technical Support Team Assist Your Product Design


<p>Complete Production Lines Support Fast Delivery<br/></p><p><br/></p>

Complete Production Lines Support Fast Delivery


<p>Supports One Stop Sourcing<br/></p><p><br/></p>

Supports One Stop Sourcing


  • Features
  • Specification
  • Function:

    • 7-inch 800*480 dot matrix widescreen TFT high-brightness color graphic LCD display

    • Chinese and English operating screens can be switched at will,the operation is simple, the configuration is simple and reliable,and the software password lock guarantees configuration security

    • Uses high-speed, high-performance 32-bit ARM microprocessor, builtin embeded operating system, real-time monitoring, display, recording, alarm

    • Large-capacity FLASH memory chip saves setting parameters and historicaldata,data can be permanently stored after power off

    • Full aluminum sealed shell to ensure the instrument works normally in harsh environments


  • Technical parameters:

    • Applicable environment temperature: -100℃~50℃ Minimum  installation  temperature:-10℃

    • Relative humidity: 10%~90%RH Control  accuracy:±0.2%FS

    • Settingmode: Touch-type key digital seting on the panel,parameter seting value password lock,seting valuepower-off permanentstorage

    • Display mode: 7-inch800*480 dot matrix widescreen TFT high-brightness color graphic LCD display,LED backlight,clear screen, wide viewing angle. The display content can consist of Chinese characters,numbers,process curves,bar diagrams,etc.The panel button can be used to complete the screen pageturning,historical data searching,curve timescale change,etc.

    • Power supply voltage: 85~264VACor 12~364VDC

    • Storagecapacity: Internal FLASHmemory capacity 64M Byte

    • Input signal: Upto 48channels ofisolated universalsignalinput,the isolation voltage between channels is greaterthan 250VAC,and the isolation voltage between channels and ground is greater than 500VAC.

    • Communication settings: Standard serial communication interface, supports ModBus-RTU communication protocol,10M Ethernet standard blade 45 interface,supports ModBus-TCP communication protocol.

    • Note: If you need to order,please consult with the local Jiahong technicians for technical confirmation and model selection.

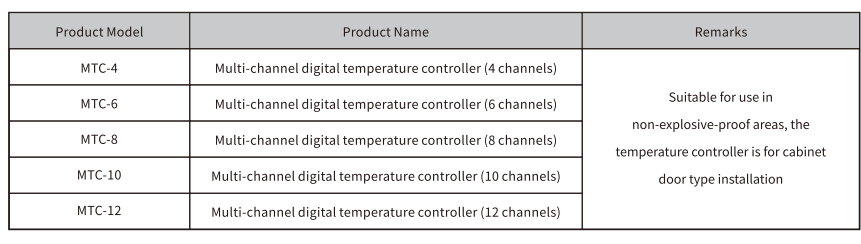

    Product Model:
