HTR self-regulator heating cable can adjust and limit the power output based on temperature detection, the benefit of self-regulator characteristics that it eliminates the possibility of burning itself due to high temperature, but also reduce the possibility of overheating the tubing, its length can be cut as required.
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America
Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery
Supports One Stop Sourcing

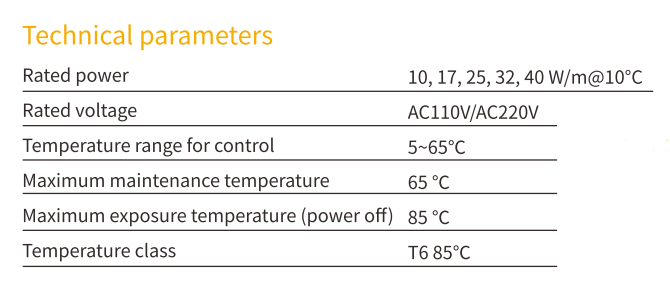

Freeze protection and process temperature maintenance Temperature Range for tube:5~65℃

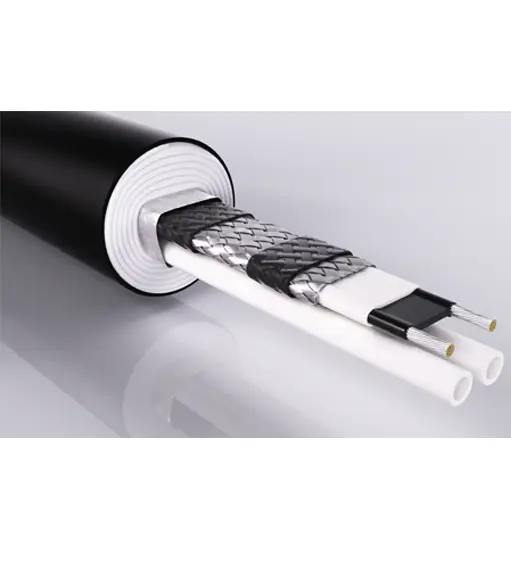

Electric heat tracing tubing bundle with HTR self-regulator heating cable is suitable for the freeze protection and process temperature maintenance of metal or non-metal tube. The product has passed the international ex-proof certification such as lECEx and ATEX and can be safely used in hazardous area.

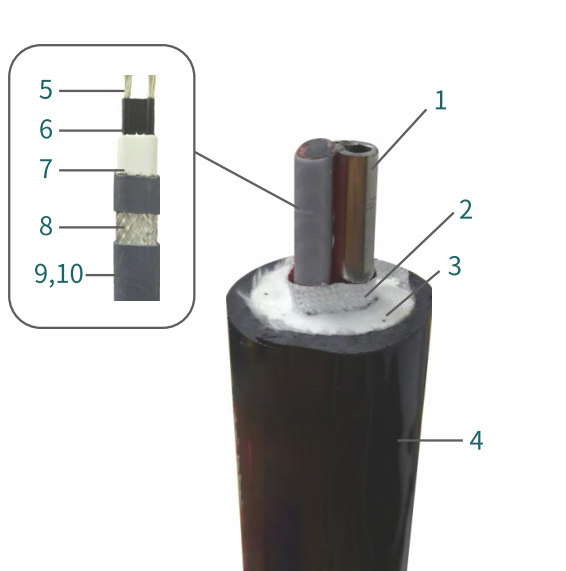

Process pipeline
Heat reflecting layer
Moisture-proof fiber/glass/wool insulation layer
Polymer outer sheath 5Tinned copper busbar
PTC semiconductor material
Polyolefin insulation layer
Tinned copper braiding
CR-thermoplastic elastomer materials (suitable for application in the inorganic chemical environment)
● Self-regulating properties
● Length can be cut as required
● Applied for hazardous area
● Consistent heat transfer and thermal performance
10 CT-Fluoropolymer materials (suitable for application in the organic chemical environment)
