JHSD-F is a pre-assembled constant wattage heating product. Its structural feature is that the resistance wire as the heating element is fixed on the central reinforcement rope in a winding manner, thus having higher tensile strength. The overall structure consists of heating wire, insulation, shielding and outer jacket. The core feature is that the joint part is equipped with a built-in thermostat, which can perform energy-saving control according to the ambient temperature, and both the joints and end seals are injection molded, which provides a more stable connection and better waterproof performance. The main function of this product is to provide heat to PVC or metal pipes in cold seasons to prevent the pipes from freezing and ensure water flow.
No.1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
Complete Test Reports For Europe And America
Technical Support Team Assist Your Product Design
Complete Production Lines Support Fast Delivery
Supports One Stop Sourcing

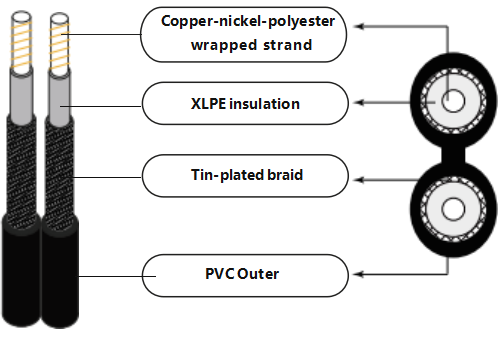

The reinforcing wire provides high mechanical strength to the product.
The heating element is made of alloy resistance wire, which is wound around a nylon strand. The dual-conductor design provides dual heating.
The insulation layer is made of XLPE (cross-linked polyethylene), providing high-performance insulation for the conductors.
The braiding layer is made of tin-plated copper wires, providing shielding and grounding.
The outer jacket is made of PVC, providing excellent mechanical protection, as well as water and corrosion resistance.
The heating element adopts a reinforced rope and wire winding structure, and the heating cable part is soft and high-strength, which can perfectly fit the pipe surface and has high heating efficiency.
The Built-in thermostat automatically turns on/off based on ambient temperature, providing energy-saving and easy-to-use operation.
The Built-in thermostat automatically shuts off power when the environment temperature exceeds 10°C, preventing overheating for safe use.
The connectors and end seals are injection molded, with IP67 waterproof and dustproof rating, suitable for harsh installation environments.
Injection-molded connection enhanced integrated protection, with secure joints, ensuring operation safety and long service life.
The special heating cable design, with a width of more than 12mm, increases the contact area between the heating cable and the pipe, greatly improving the heating efficiency.
Wide application: The sheath is made of high quality PVC material, adapting to the harsh environment.
Tinned copper braid has better anti-oxidation and anti-corrosion properties than bare copper. The ground wire is safe to use and has a long service life.
The product is pre-assembled, allowing for convenient plug-and-play operation.

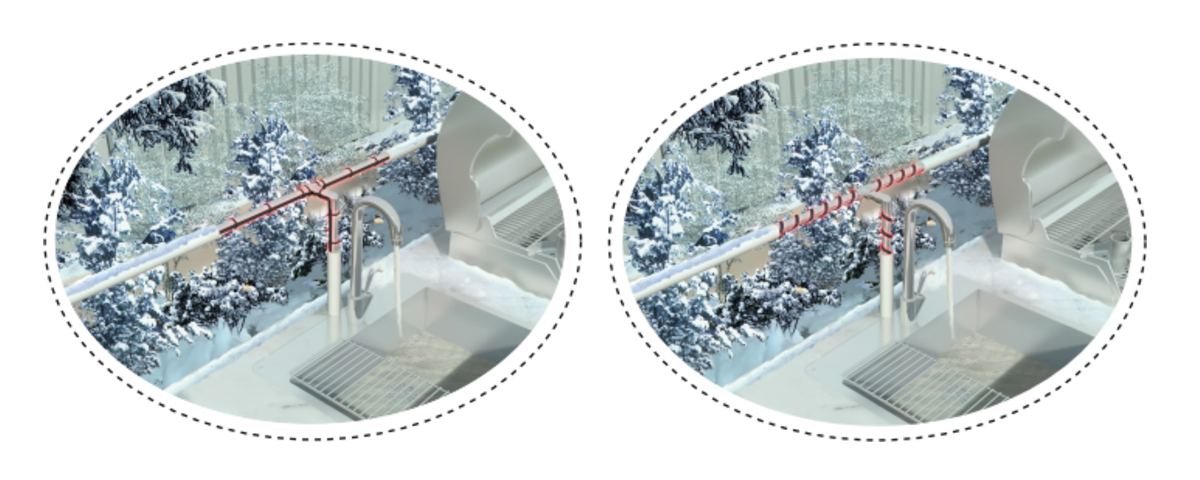

This product is primarily designed for the following scenarios: It can provide heating for PVC or metal pipes in cold seasons to prevent the pipes from freezing and ensure water flow in the pipes. In order to match a variety of pipes, we can install them by straight laying or winding, and quickly check the power supply status of the equipment through the lighted plug.
