Prevents Snow and Ice Dam Damage to Roof, Gutters, Downspouts, etc.
Pre-assembled hence Ready to Install;
Emits zero Electromagnetic Fields;
Requires an External Thermostat;
Comply with both Europe and North America Safety Standards;
3 Year Warranty.
Custom Your Own Marks and Packing

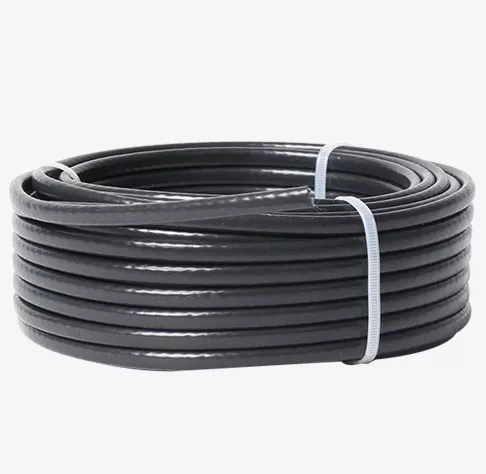

Jiahong Deicing Cable is a kind of well assembled twin-conductor constant wattage heating cable. It is designed to prevent snow and ice dams from damaging roofs, gutters, and downspouts. The cable is commonly seen in factories, offices, hones, etc.
Jiahong Deicing Cable heats up through the inner heating conductor and it cannot be cut at any circumstances. Different parts cannot overlap each other as well. The cable may work under the rated voltages of 120Vac or 240Vac, or 230Vac. The maximum ambient temperature is 85°F (30oC) and the minimum installation temperature is 15°F (-10oC). Jiahong Deicing Cable consists of heating cable and cold lead. The cold lead connects to the plug and the heating cable provides the heat. The cold lead is a regular electric wire with a plug. Both European standard plug and North American standard plug are provided for your selection.
Jiahong Deicing Cable requires an external thermostat which helps to adjust the heat output. Jiahong provides a relevant thermostat. It works normally when the ambient temperature is around 4oC ~ 13oC. When the ambient temperature is over 4oC, the thermostat disconnects the circuit. Jiahong Deicing Cable can work normally for more than 10 years and it has 3 years warranty. Every heating cable has already been approved by UL, ETL, and CSA in North America, and by CE and TUV in Europe.
Top 1 Heating Cable Exporter in Asia-Pacific
Over 25 Years of Manufacturing Experience
The Third Party Audit and ISO9001 Quality Approved
Independent R&D Teams
Complete Production Lines Support Fast Delivery
Supports One Stop Source
Jiahong Deicing Cable is a kind of well assembled twin-conductor constant wattage heating cable.
It is designed to prevent snow and ice dams from damaging roofs, gutters, and downspouts.
The cable is commonly seen in factories, offices, families and livestock houses, etc.
Some customers also use this kind of heating cable to provide frost protection for plants.
It is popular in both America and Europe. In Europe, the regular type is 30w/m (9w/ft.).
But the type of 5w/ft. is popular in the American market.
Jiahong Deicing Cable heats up through the inner heating conductor and it cannot be cut in any circumstances.
Any attempt to physically alter the heating cable will damage the cable.
Once cut, the heating cable cannot be repaired.
Besides, different parts cannot overlap each other as well.
The cable may work under the rated voltages of 120Vac or 240Vac, or 230Vac.
The maximum ambient temperature is 85°F (30oC) and the minimum installation temperature is 15°F (-10oC).
Jiahong Deicing Cable consists of heating cable and cold lead.
The cold lead shall connect to the plug and the heating cable provides the heat.
The cold lead is a regular electric wire with plug.
Both European standard plug and North American standard plug are provided for your selection.

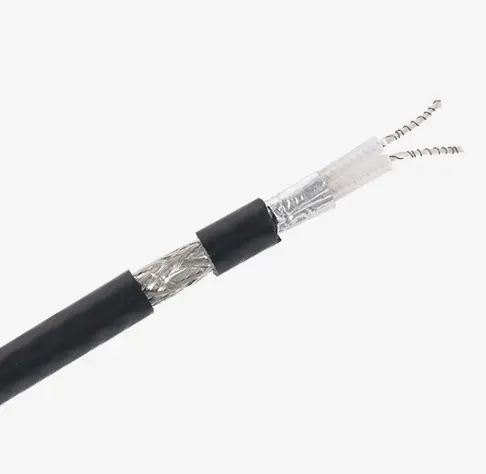

The Heating Cable contains multiple components such as inner nylon filler, alloy resistance wire, XLPE insulation, aluminum foil, tinned shield, and PVC outer jacket.
Alloy resistance wire is the core element.
It is the heating element and the conductor.
Nylon filler is used as a carrier for the resistance wire.
Nylon filler should withstand to 200oC high temperature.
So it would not burn out if the thermostat works normally.
Aluminum foil is used to fix the two pieces of conductors – and this is the benefit for the weaving the tinned copper shield.
Braid strengths and structure shields electromagnetic radiation generated within the cable.
Meanwhile, it provides ground protection as well.
Safe and zero EMF (electromagnetic fields) structure design is very important for a floor heating system.
Outer jacket is often made of 100% water-proof materials.
PVC is an affordable and durable material that is widely accepted by international brands.
Jiahong Pipe Freeze Protection Cable is simple and easy to install because it has a flat double-conductor structure design.
However, different parts of the cable never overlaps each other during the installation.
Double-conductor can be seen as a complete wire because the two conductors are connected together at one end.
Each Jiahong Deicing Cable has a specific length.
Most customers may choose some regular sizes from us according to their practical power demands.
The length ranges from 2 to 70 meter, which are common in the European markets and 20 to 240ft in American markets.
Therefore, all Jiahong Pipe Freeze Protection Cables have already been pre-assembled when they leave the factory.
Jiahong Deicing Cable requires an external thermostat which helps to adjust the heat output.
Jiahong provides a relevant thermostat.
It works normally when ambient temperature is around 4oC ~ 13oC.
When ambient temperature is over 4oC, the thermostat disconnects the circuit.
Jiahong Deicing Cable can work normally for more than 10 years and it has 3 years warranty.
Every heating cable has already been approved by UL, ETL and CSA in North America, and by CE and TUV in Europe.
All Jiahong Deicing Cables are generally packed with color box or plastic box for our customers.
You may also have your logo and name on the cable.
Jiahong has complete product ranges which could support one-stop sourcing.
Catalog Number | Voltage V | Cable Length/ft | Output W/ft | Watts | Amps | Ohms |
JHRD-100-1 | 120 | 20 | 5 | 100 | 0.8 | 144 |
JHRD-150-1 | 120 | 30 | 5 | 150 | 1.3 | 96 |
JHRD-300-1 | 120 | 60 | 5 | 300 | 2.5 | 48 |
JHRD-400-1 | 120 | 80 | 5 | 400 | 3.3 | 36 |
JHRD-500-1 | 120 | 100 | 5 | 500 | 4.2 | 28.8 |
JHRD-600-1 | 120 | 120 | 5 | 600 | 5 | 24 |
JHRD-800-1 | 120 | 160 | 5 | 800 | 6.7 | 18 |
JHRD-1000-1 | 120 | 200 | 5 | 1000 | 8.3 | 14.4 |
JHRD-1200-1 | 120 | 240 | 5 | 1200 | 10 | 12 |
