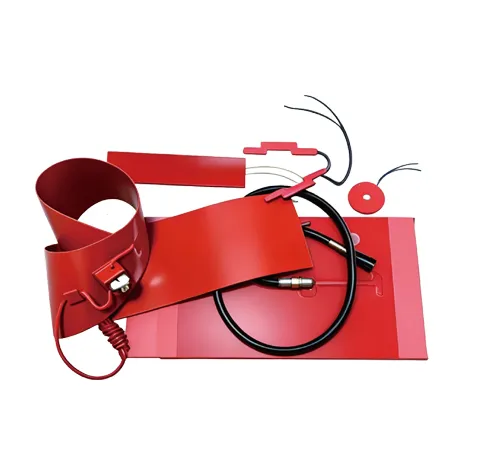

EPSH silicone heaters can effectively ensure the safe transport of conveyed media and the status of stored media.
The structure and power can be customized based on the type of the heated device and media.
EPSH silicone heaters can provide output power of up to 9000 Wand withstand amaximum long-term temperature of 250℃.
The product can be designed with an explosion-proof structure and can be applied in explosive gas environments based on explosion-proof certification guidelines.
The heating elements inside the EPSH silicone heater provide uniform surface temperature maintenance,with a large heating area and even distribution.
Insulation materials are made of silicone rubberglass fiber fabric, which has high temperature resistance and waterproof properties, reinforced with aglassfiber woven fabricto meet temperature resistance requirements while providing excellent tensile strength.
To enhance the safety and reliability of the product,an optional built-in grounding explosion-proof mesh can be provided for effective circuit grounding protection.
The EPSH model can beequipped with overheat protection elements and PT100 temperature detection elements as needed.
EPSH heaters can be customized based on the shape andtype of the user's products.
The EPSH product features a lightweight, integrated design that offersflexibility not achievable with traditional metal heaters, making installation easy and durable, with along service life.
Compatible with aviation power connectors,waterproof plugs, and optional temperature controllers.
The silicone rubber material effectively resists water and moisture, with an insulation resistance greater than 500 MΩ, and withstands AC voltage up to 2500V.
The powerinput cold line can be matched with high-temperature silicone power cables, fluoroplastic power cables, or micaglass fiber power cables.
Rated voltage: | 110V,220V,380V |
Maximum exposure temperature: | +250℃ |
Minimum installation temperature: | -60℃ |
Protection level: | Ip66 |
Power Density: | 0.06~3 W/CM² |
Dimensions: | Max width:1150 mm,max:length 2350 mm |
Maximum holding temperature: | 180℃ |
