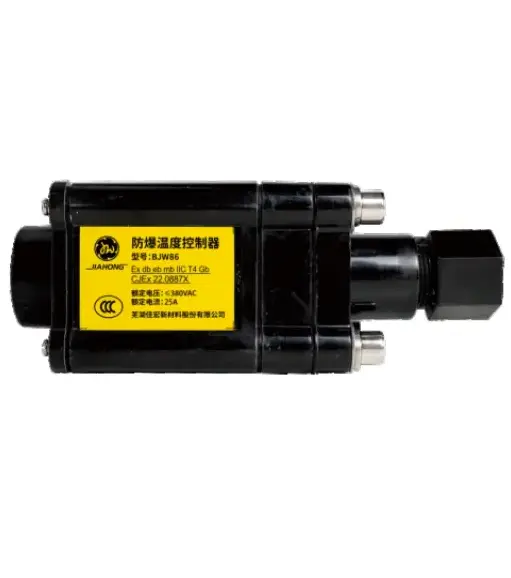

BJW86 explosive-proof temperature controller is used to control the temperature of the heat tracing medium.
BJW86 is designed and manufactured according to the requirements of explosive-proof electrical appliances. It is used in conjunction with CH universal explosive-proof junction box. The explosive-proof mark is"Ex db eb mblIC T4 Gb;its shellis BMC composite material,which has anti-corrosion,lightweight,high mechanical strength, high insulation strength and other characteristics.
The sealing part is silicone rubber, which has high-temperature resistance (300℃, high voltage resistance, other characteristics and the fasteners are stainless steel components.
Rated voltage: 220V/380V
Rated current: 40A
Temperature Control Range: 0℃~120℃,0℃~150℃,0℃~200℃
Temperature Control Precision: ±3℃
DifferentialOn/Off Temperature: ≤4℃
Control Cable Sealing Ring Inner Diameter: φ14mm Protection
Grade: IP65
